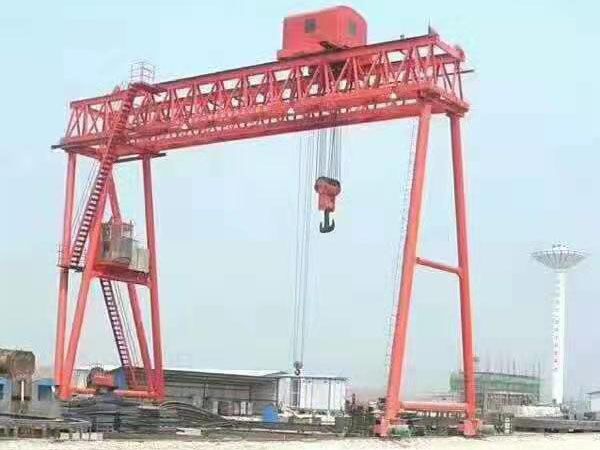

Gantry crane, also known as gantry crane, is a bridge type crane whose bridge is supported on the ground track through two legs. It is widely used in the construction industry. But different cranes have different applications, so let's introduce the classification of gantry cranes.
1. Full gantry crane: the main beam has no overhang, and the trolley is carried out within the main span.
2. Semi portal crane: the height difference of the outrigger can be determined according to the civil engineering requirements of the site.
3. Double cantilever gantry crane: a common structural form, whose structural stress and effective utilization of site area are reasonable.
4. Single cantilever gantry crane: this structural form is often selected due to site constraints.
These main types of gantry cranes are widely used, so they are commonly used. I hope this article introduced by Shandong gantry crane manufacturer will be helpful to you.
