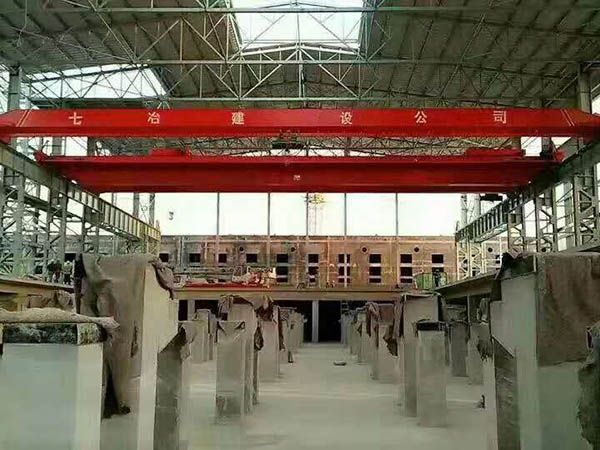

Control system of bridge crane

The control system of the bridge crane is a very important part of the crane. If you want to operate the crane well, you must understand its control system in detail. In this issue, Shandong bridge crane manufacturer will introduce the control system of the bridge crane to you.

1、 Crane control form

1. Cam controller control

2. Master controller control

2、 Automatic control

1. PLC automatic control. The operation of each mechanism of the crane depends on the program control device. Now the crane is mostly controlled by the programmable controller.

2. Automatic positioning device control. The automatic positioning of crane generally determines the mechanism form of the device according to the use environment and accuracy requirements of the controlled object. The automatic positioning device usually uses various detection elements to cooperate with relays, contactors or programmable controllers to achieve the purpose of automatic positioning.

3. The ground operation, wired and wireless remote control hoist crane adopts ground control, and its key component is the manual button switch. Wired remote control is a method that uses a special cable or power line as a carrier to transmit signals with a modem, so that control can be realized with only a few channels. Wireless remote control uses modern electronic technology to transmit information in the form of radio wave or light wave, so as to achieve the purpose of control.

4. Deviation correction and electrical synchronization of crane operating mechanism. Deviation correction is divided into manual deviation correction and automatic deviation correction. Manual deviation correction is that when the deviation correction exceeds a certain value, the deviation correction signal generator sends a signal, and the driver disconnects the motor at the leading outrigger side and connects the motor at the lagging outrigger side for adjustment. Automatic deviation correction means that when the deviation exceeds a certain value, the deviation correction instruction generator sends out instructions, and the system automatically corrects the deviation. Electrical synchronization is a kind of electric shaft system with equalizing motor to realize electrical synchronization in AC drive.

5. Crane electromagnet and its control circuit. It mainly provides the DC power supply of the electromagnet and completes the control requirements (suction and discharge). Its working mode is divided into fixed voltage and adjustable voltage.
